Fortis 270i
Fortis 270i
MIG/MAG Welder
Rugged Power. Reliable Performance. Built for the Body Shop.

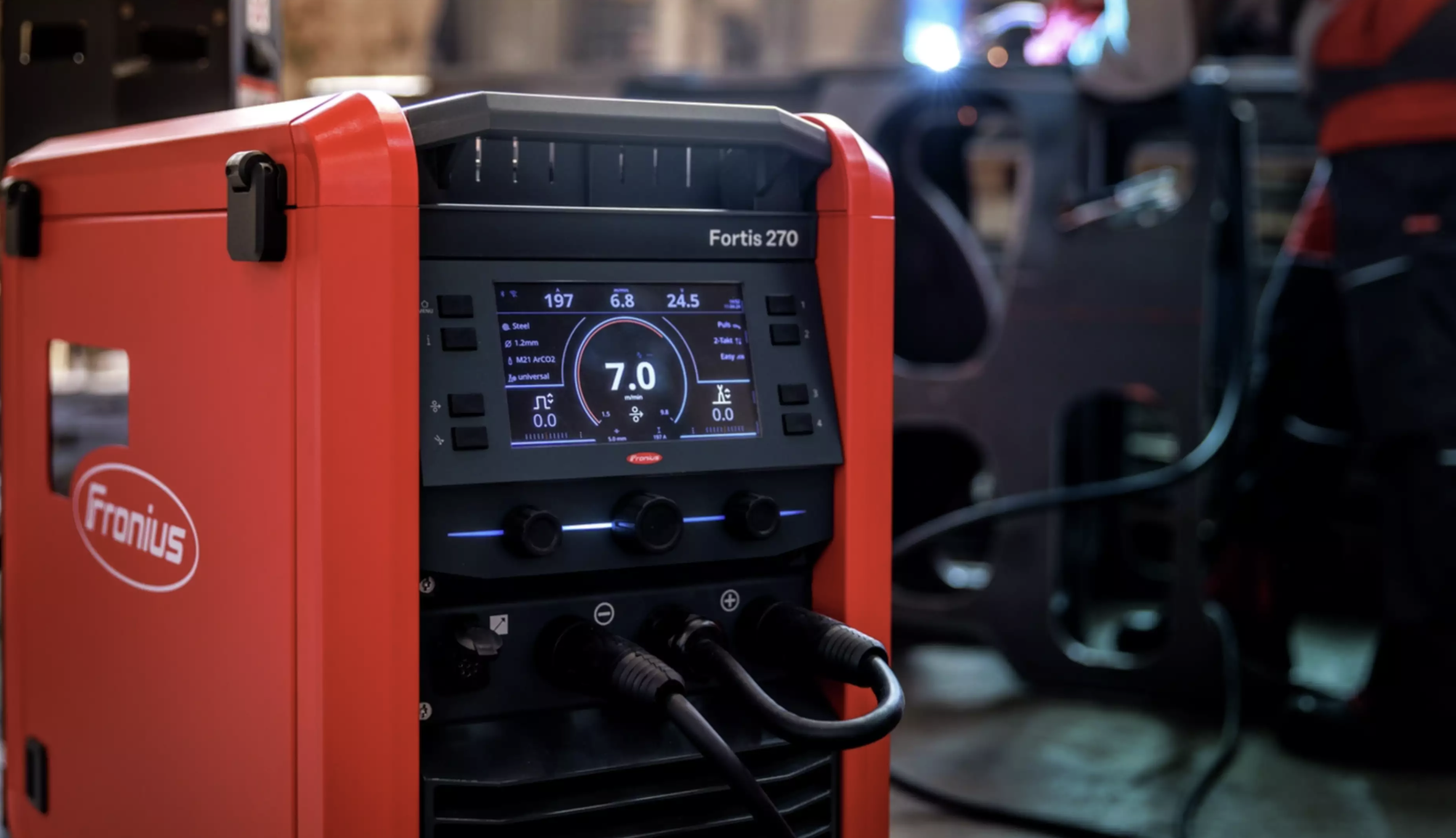

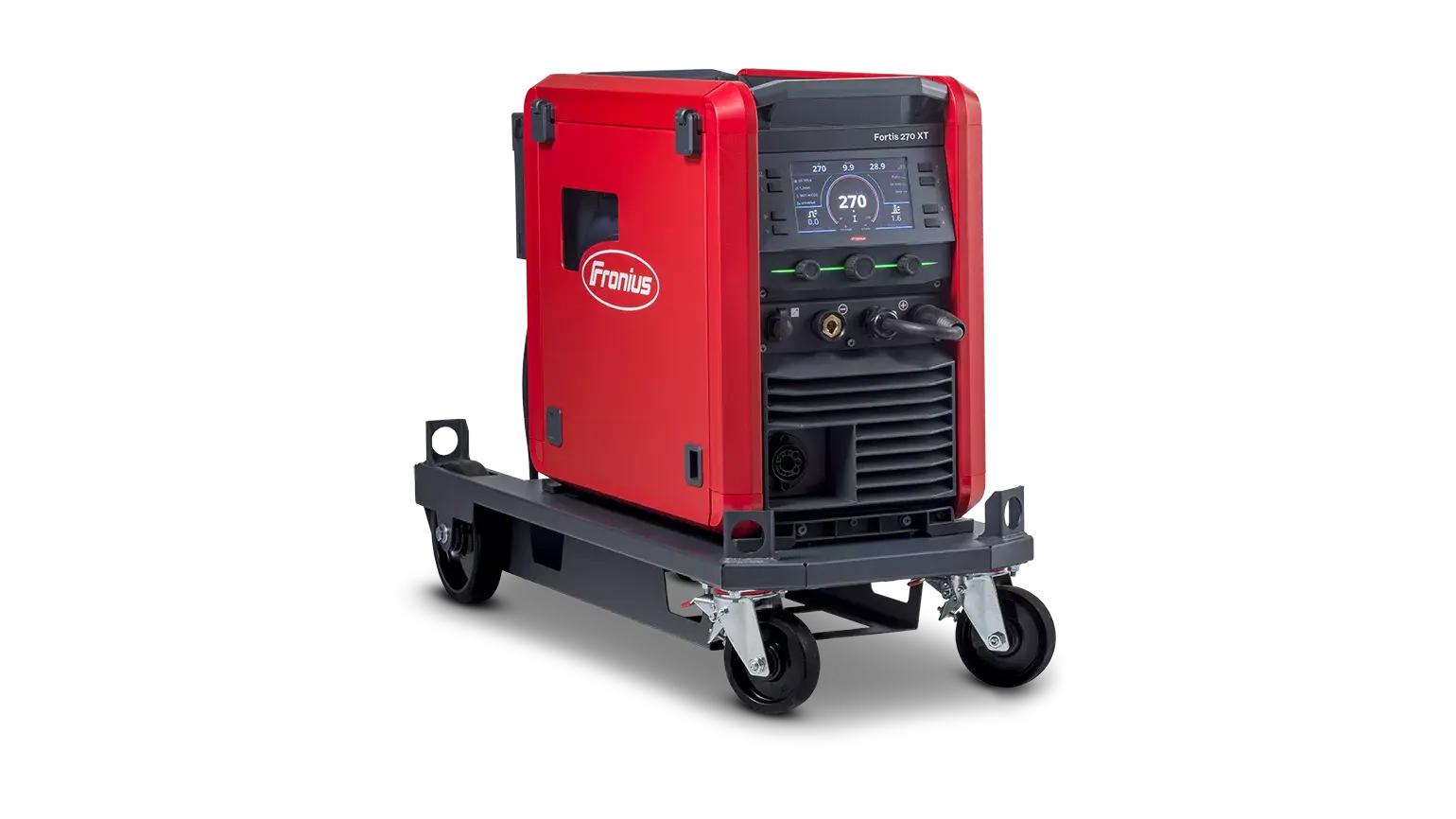

The Fronius Fortis 270i is the compact, gas-cooled MIG/MAG solution designed for demanding collision repair environments. With up to 240 optimized welding characteristics, it delivers exceptional arc stability, easy operation, and versatile performance across steel, stainless, and aluminum applications, making it the ideal system for OEM-certified repair facilities.
Description:
Consistent Arc Performance
Excellent ignition and a stable arc for repeatable, high-quality welds.
Intuitive Control Panel
7″ color display with rotary/push controls and memory functions for fast setup.
Welding Parameter Wizard
Guides users to the ideal settings to reduce rework and ensure perfect results.
Multiprocess Capability
Standard MIG/MAG, TIG DC, and MMA welding up to 270 A.
Compact, Durable Design
79 lb aluminum-reinforced housing built for daily shop use.
4-Roll Wire Feeder
Delivers smooth, precise wire control for consistent deposition. Smart Connectivity
Compatible with WeldCube Air and WeldCube Premium for data logging and performance tracking.
Specifications
GENERAL DATA
| Welding current min. | 3 A |
| Welding current max. | 270 A |
| Operating voltage min. | 14.2 V |
| Open-circuit voltage | 105 V |
| Degree of protection | IP23 |
| Dimension / length | 2.23 ft |
| Dimension / width | 1.21 ft |
| Dimension / height | 1.82 ft |
| Weight | 80.13 lb |
| Weight incl. packaging | 92.61 lb |
| Interference emission class | A |
| Welding current / Duty cycle [10min/40°C] | 270 A / 40% |
| Welding current / Duty cycle [10min/40°C] | 250 A / 60% |
| Welding current / Duty cycle [10min/40°C] | 210 A / 100% |
| Maximum working voltage | 41.3 V |
TECHNICAL DATA
| Power Factor (pf) | 0.99 |
More Information & Resources
Additional Documents: Brochure
