TST 2200 Mig (FE)/stick
TST 2200 Mig (FE)/stick

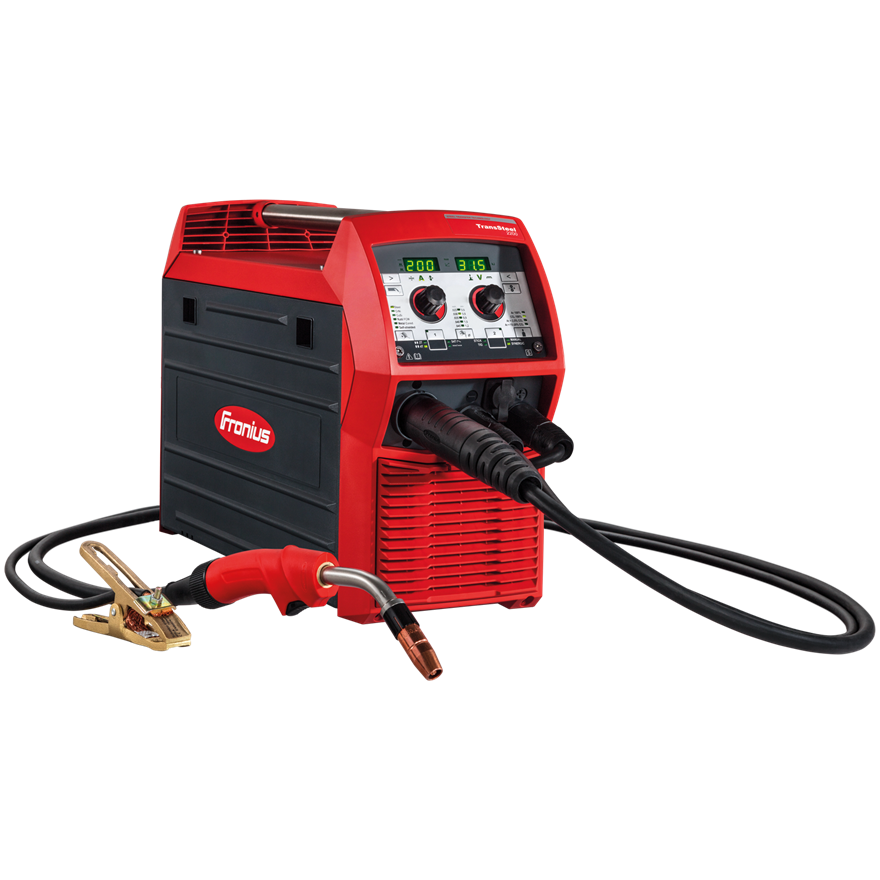

THE TRANSSTEEL 2200 IS A COMPACT, 3-IN-1 SOLUTION.
It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device. The TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
Description
General Data
| Mains voltage | 230V |
| Mains voltage tolerance | -20% / +15% |
| Mains Frequency | 50-60Hz |
| Welding current min. | 10 A |
| Welding current max. | 230 A |
| Welding current / Duty cycle | 210A / 30% MAG, 180A / 35% MMA, 230A / 35% TIG |
| Welding current / Duty cycle | 170A / 60% MAG, 150A / 60% MMA, 200A / 60% TIG |
| Welding current / Duty cycle | 150A / 100% MAG, 130A / 100% MMA, 170A / 100% TIG |
| Operating voltage min. | 14.5 V |
| Open-circuit voltage | 90 V |
| Degree of protection | IP23 |
| Dimension / length | 560 mm |
| Dimension / width | 215 mm |
| Dimension / height | 370 mm |
| Weight | 16.2 kg |
| Weight incl. packaging | 19.1 kg |
| Mains cable included | Yes |
| Earth connection | Dinse |
| Length of mains cable | 2500 mm |
