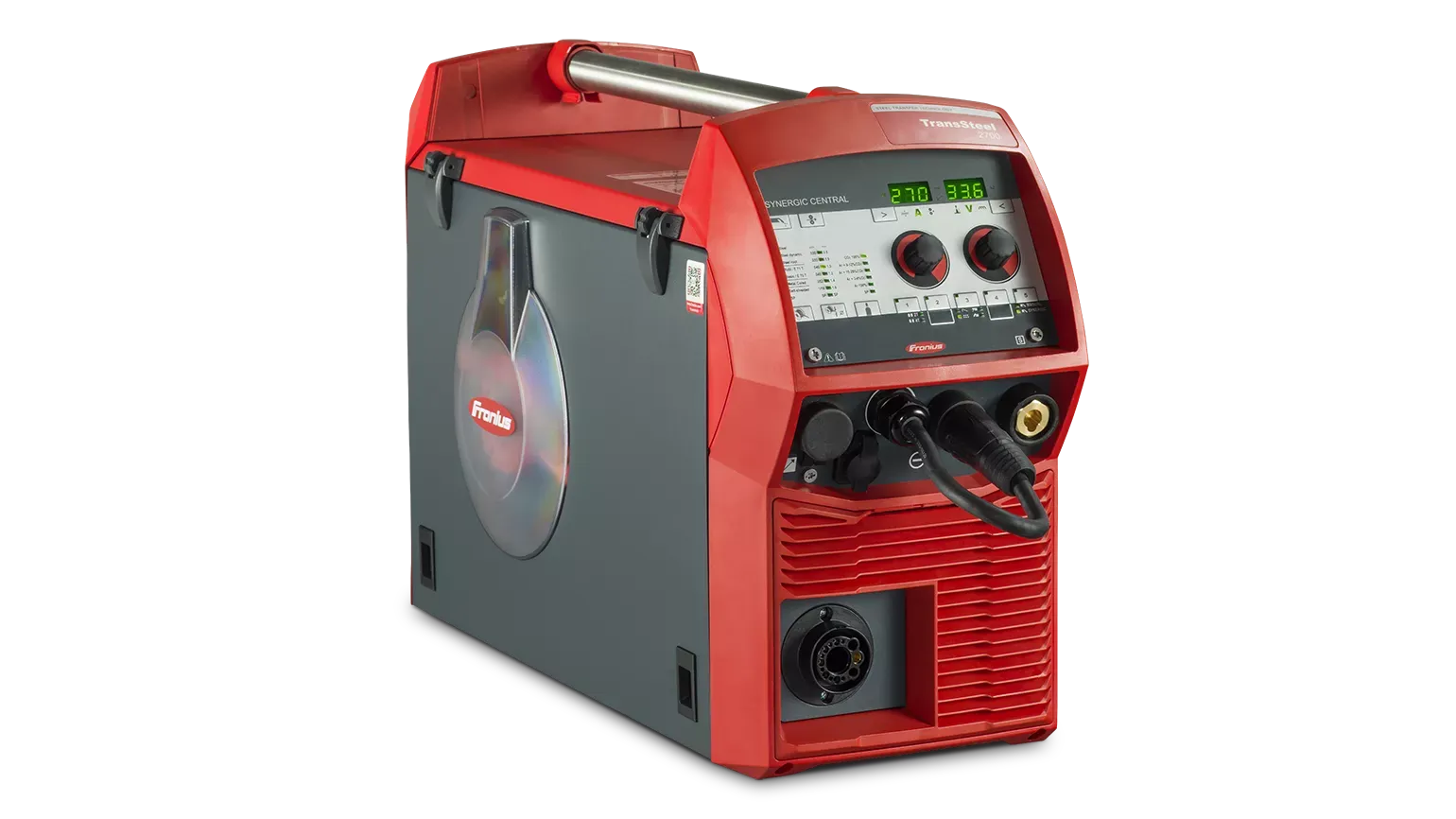

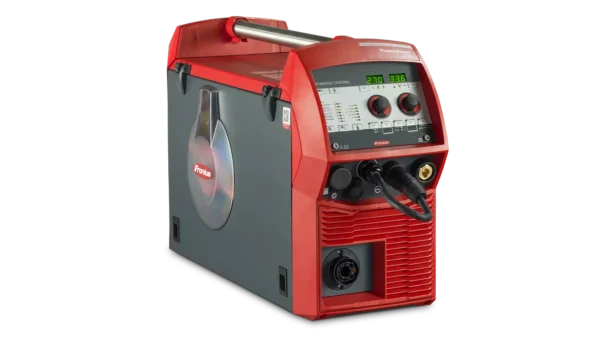

TransSteel 2700 Mig
TransSteel 2700 Mig
WHETHER A CONSTRUCTION SITE OR A WORKSHOP, FROM AGRICULTURAL ENTERPRISES TO METALWORKING COMPANIES –
For assembly, repair, and maintenance work, the TransSteel Multiprocess series masters the MIG/MAG, TIG, and electrode welding processes to professional levels.
Featuring:
- 270A welding power source.
- Integrated wire feeder
- MIG Torch, air-cooled, 60 degree, 15′
- Ground cable, clamp, 13′
- Consumables, .030 & .035
- Feeder rolls, .030 & .035
- Flow meter with gas adapter
- Pre-assembled & tested
Includes MTG 320i MIG Torch US Style
Description
General Data
| Mains voltage | 3 x 380V / 400V / 460V |
| Mains voltage tolerance | -15% / +15% |
| Mains Frequency | 50-60Hz |
| Welding current min. | 10 A |
| Welding current max. | 270 A |
| Welding current / Duty cycle | 270A 30% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle | 210A 60% MIG/MAG, MMA, TIG |
| Welding current / Duty cycle | 170A 100% MIG/MAG, MMA, TIG |
| Operating voltage min. | 14.5 V |
| Open-circuit voltage | 85 V |
| Degree of protection | IP23 |
| Dimension / length | 687 mm |
| Dimension / width | 276 mm |
| Dimension / height | 445 mm |
| Weight | 30.8 kg |
| Weight incl. packaging | 34 kg |
| Mains cable included | Yes |
| Earth connection | Dinse |
| Einschaltdauer 2 (bei 40°C) | 30 % |
| Einschaltdauer 2 (bei 40°C) | 60 % |
| Einschaltdauer 2 (bei 40°C) | 100 % |
| Schweißstrom 2 (bei 40°C) | 270 A |
| Schweißstrom 2 (bei 40°C) | 210 A |
| Schweißstrom 2 (bei 40°C) | 170 A |
| Length of mains cable | 5000 mm |
