TU Car 4 Standard
TU Car 4 Standard
- 320A MV Compact TPS 320i Power Source
- Synergic & Pulse Software
- Integrated Wire Feeder
- MTG 320i Air Cooled MIG Gun, 15′, 60°, Black Handle No Controls (4,036,407)

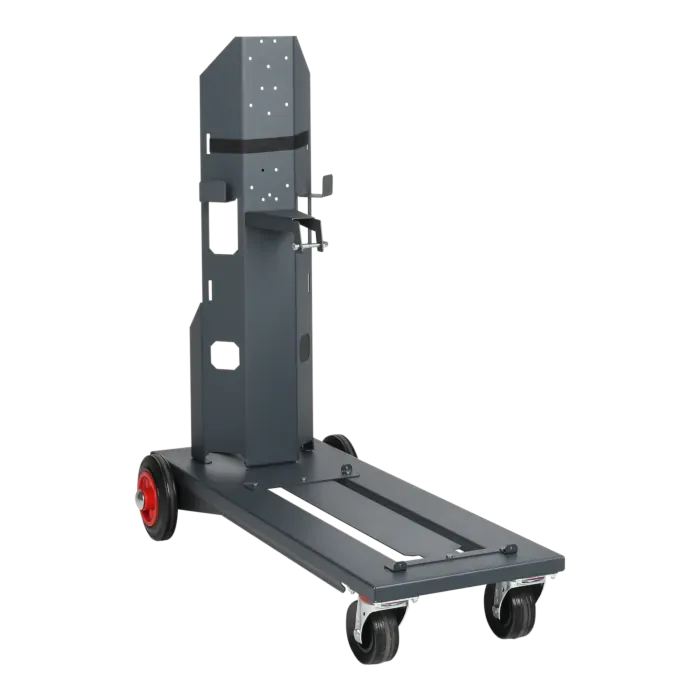

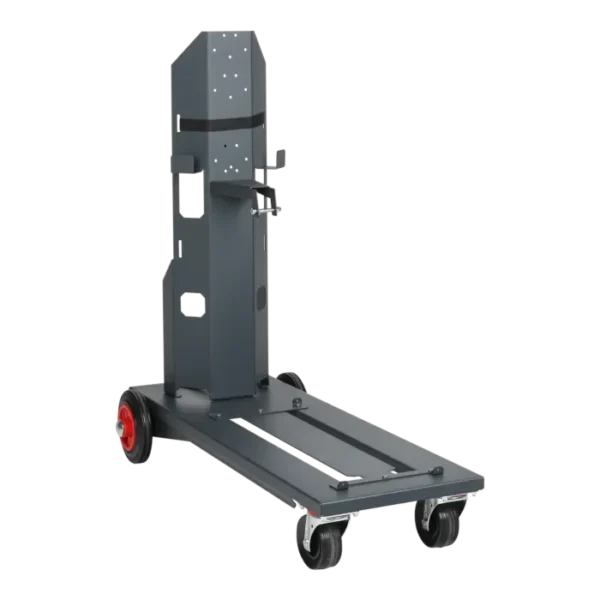

- TU Cart4 Pro Cart w/ Cylinder Rack
- Ground Cable/Clamp Assembly, 16′
- Consumable Setup, .035 Steel
- Consumable Setup, .045 Steel
- Consumable Package
- Flowmeter w/ Gas Adapter
- Pre-Assembled and Tested by Fronius
Description
General Data
| Mains voltage | 3 x 400V |
| Mains Frequency | 50-60Hz |
| Welding current min. | 3 A |
| Welding current max. | 320 A |
| Welding current / Duty cycle [10min/40°C] | 320A / 40% |
| Welding current / Duty cycle [10min/40°C] | 260A / 60% |
| Welding current / Duty cycle [10min/40°C] | 220A / 100% |
| Open-circuit voltage | 71 V |
| Degree of protection | IP23 |
| Dimension / length | 706 mm |
| Dimension / width | 300 mm |
| Dimension / height | 510 mm |
Technical Data
| Mains fuse | 35A |
