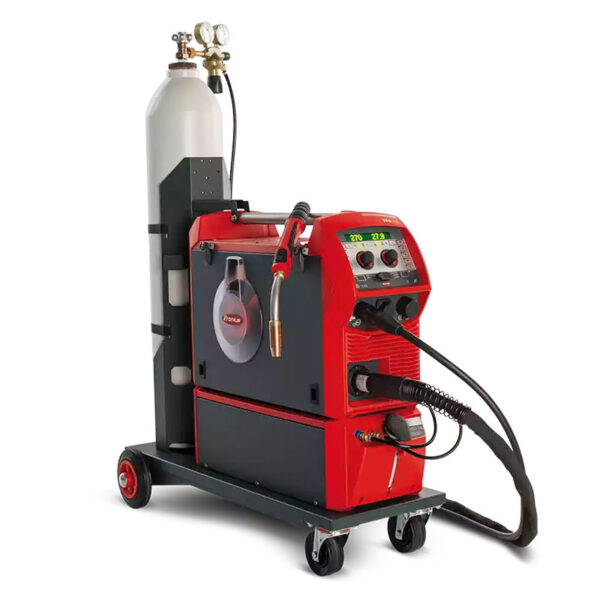

MULTIMIG 522 – Aluminum Welder
MULTIMIG 522 – Aluminum Welder
Aluminum welder and brazer made with synergic pulsed technology
The MULTIMIG 522 comes with a complete set of synergic programs for brazing and welding aluminum alloy, galvanized sheet metal, stainless, and high-strength steel.
Description
- Enables precision electronic control of output power for better quality welds
- Reduces input power by avoiding energy waste found in most electronic-based equipment
- Reduces operating costs with GREEN technology (Integrated Power Factor Correction (PFC))
Two torch usage:
- Standard MIG
- Operates in pulse synergic, synergic, or conventional mode
- Push-pull torch:
- The Chief Elektron Fusion Technologies push-pull system torch has an up-down digital current with a built-in feeder grip, correcting many of the problems encountered when feeding and welding soft aluminum wire, down to 0.6mm.
- The small and lightweight torch (no bulky spool-gun) enables real-time control of the welding process by control of the wire feed speed and current level.
- Program options available to customize unit operation that meets specific working conditions: Arc Length, 2 Time, 4 Time, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc.
Specifications
According to IEC 60974.1:
-
- 160A: 100%
- 200A 60%
Input power:
-
- 4.1 KVA 60%
- 5.7 KVA 20%
Max. wire spool size:
-
- “Ø 200 mm / 5 kg
- Ø 300 mm / 15 kg”
Synergic programs:
-
- “0.6/0.8/1.0 Fe-INOX
- 0.6/0.8/1/1.2 AL”
- 0.8/1 Stainless Steel – CuSi3%
- “0.8/1 Cu-Al8%
- 0.9 Flux cored”
- Current adjustment range: 15A to 200A
- Dimensions inches: 23.2 x 37.5 x 395h
- Duty cycle (10 min 40°C)
- Protection class: IP 23 S
- Single phase input: 230V 50/60Hz +15% to -20%
- Standard supplied
- Stepless regulation: Electronic
- Supply fuse rating (slow blow): 30 A
- Weight: 65.3 lbs
